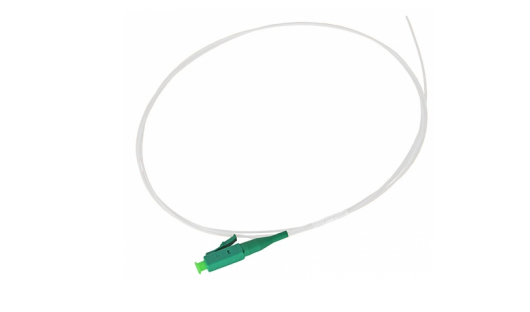

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | TK-SC/UPC 0,9 mm |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union,T/T,MoneyGram/Paypal |
| Możliwość Supply: | 1000pcs/dzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | LC Simplex 0,9 mm włókna optyczne | Strata interwencyjna: | ≤0,3dB |
|---|---|---|---|
| Strata powrotu: | APC SM≥ 60 dB | Typ włókna: | SM G657A1 |
| Średnica: | 0,9 mm | Typ złącza: | LC/APC |
| Materiał z kurtki: | LSZH/PVC/PU | Kolor: | Pomarańczowy lub dostosowany |
| Długość fali: | 1310nm, 850nm | Długość: | 30 cm lub dostosowane |
| Temperatura pracy: | -20 ℃ ~ 70 ℃ | Średnica włókien: | 50/125 |
| Stopień: | Stopień telekomunikacyjny | Certyfikat: | CE/ROHS/REACH |
| Podkreślić: | 0.9mm simplex fiber optic pigtail,APC connector fiber optic pigtail,G657A1 single mode pigtail |
||
opis produktu
LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Application
- CATV
- Telecommunication Networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| End face type | APC |
|---|---|
| Fiber type | SM G657A1 |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | APC SM≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Hytrel |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 30cm or Customized |
| Packing | 12PCS 0.9mm color pigtails in one set |
Why choose TAKFLY - Advantages
Professional manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 500 assembly workers with 5 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
