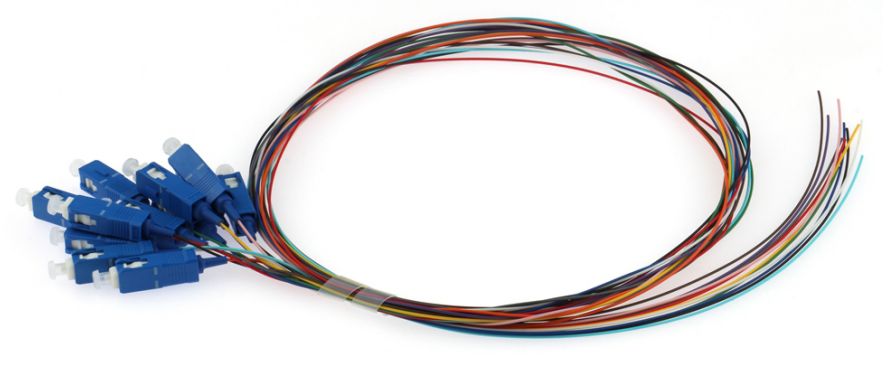

SC/UPC 0.9mm 12 Color Fiber Optic Pigtail LSZH/PVC 2M
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | TK-PC-48F-SC-OS2-50M |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union, T/T, MoneyGram/Paypal |
| Możliwość Supply: | 1000pcs/dzień |
|
Szczegóły informacji |
|||
| Produkt NEC Pigtailam: | SC/UPC 0,9 mm 12 kolorowe włókna optyczne | Typ powierzchni końcowej: | SC/UPC |
|---|---|---|---|
| Typ włókna: | SM G652D | Średnica kabla: | 0.9 lub dostosowany (Simplex/dupleks) |
| Strata interwencyjna: | ≤0,3dB | Strata powrotu: | UPC SM≥50dB |
| Powtarzalność: | ≤ 0,1 | Trwałość: | ≤ 0,2dB |
| Wytrzymałość na rozciąganie: | 0,9 mm > 5 N | Temperatura pracy: | -20 ℃ ~ 70 ℃ |
| Temperatura przechowywania: | -40 ℃ ~ 80 ℃ | Zewnętrzny materiał osłony: | PCV, LSZH, TPU |
| Długość: | 2m lub dostosowane | Marka światłowodowa: | Corning, YOFC, OFS, Draka |
| Podkreślić: | SC/UPC fiber optic pigtail 0.9mm,12 color fiber optic pigtail LSZH,2M fiber optic pigtail PVC |
||
opis produktu
Optic pigtail, only one end with connector, but the other end is the fiber core of optical cable, which is used for the connection between optical termination box and equipment, one end of the pigtail is spliced with the fiber core of fiber optic cable, and the other end could use LC,SC,FC,ST connector to connect with optical media converter or optical transceivers, etc... , finally realize the optical data transmission.
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
| End face type | SC/UPC |
|---|---|
| Fiber type | SM G652D |
| Cable Diameter | 0.9mm or customized |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | 2M or Customized |
| Packing | 12PCS 0.9mm color pigtails in one set |
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
A1: Please let us know your email or contacts from website directly for our catalogue and price list
A2: Yes, we may consider discounts for multiple container load of mixed goods
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
A8: EXW, FOB, CFR, CIF, DDU
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
