10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | TK-PC-48F-SC-OS2-50M |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union, T/T, MoneyGram/Paypal |
| Możliwość Supply: | 2000 numerów tygodniowo |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Konwerter światłowodowy 10/100/1000Base-TX na 1000Base-FX z LFP | Standard: | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|---|---|
| Szybkość transmisji danych: | Miedź: 10/100/1000M; Światłowód: 10/100/1000Mbps | Kontrola przepływu: | Pełny dupleks: kontrola przepływu; Połowa dupleksu: ciśnienie wsteczne |
| Pełny dupleks: kontrola przepływu; Połowa dupleksu: ciśnienie wsteczne: | Liczba portów miedzianych: 1 Złącze: Złącze RJ45 Odległość: 100 m | Marka światłowodowa: | Corning, YOFC, OFS, Draka |
| Port światłowodowy: | Liczba portów światłowodowych: 1 Złącze: domyślnie SFP, opcjonalnie FC/ST /SC Długość fali: TX 1550 | Zasilanie: | Moc robocza: DC5V 1A Zasilanie AC: 100V~ AC240V do 5V1A lub zasilanie DC: -36~-72V do 5V1A Zasilanie |
| Zużycie energii: | <2W | Środowisko: | Temperatura pracy: -10~55°C Temperatura przechowywania: -40~85°C Wilgotność względna: 5% do 95%, bez |
| Wymiary: | Zewnętrzne: 94 mm x 70 mm x 26 mm | waga brutto: | Zewnętrzne: 0,4 kg |
| Podkreślić: | Gigabit Ethernet fiber optic converter,10/100/1000Base-TX media converter with LFP,1000Base-FX fiber optic media converter |
||
opis produktu

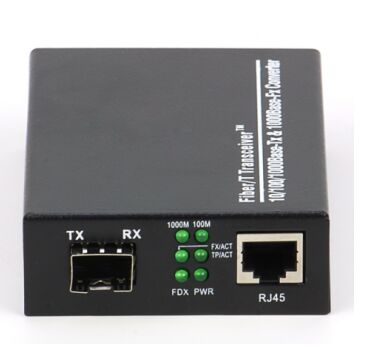

10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
DF-MC12 Serial Fiber Media Converter translates the signal from a twist-pair 10/100/1000MBase-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable, which supports LFP (Link Fault Pass-through) function.
DF-MC12 Serial Fiber Media Converter translates the signal from a twist-pair 10/100/1000MBase-TX cable to 1000Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable, which supports LFP (Link Fault Pass-through) function.
Product Features
- 1000Mbps cut-through transmission
- 10/100/1000Mbps store-and-forward
- Packet size up to 1518 bytes
- Supporting VLAN / VoIP / QoS packets
- Support flow control and reduce broadcast packets
- Supporting STP to form a redundant network
- Extremely low power consumption, low heat, stable performance
- Providing Desktop, Wall-mounted, Chassis, DIN-rail installation
- LFP (Link Fault Pass-through) Function
- External Power Adapter or USB power source
- DIP Switch to set configurations
- Supporting extra-long packets up to 1600 bytes
Product Specifications
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No.s of Copper Port: 1 Connector: RJ45 Connector Distance: 100m |
| Fiber Port | No.s of Fiber Port: 1 Connector: SFP as default, FC/ST/SC optional Wavelength: TX 1550 nm/RX 1310 nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power consumption | <2W |
| Environment | Operating temperature: -10~55ºC Storage Temperature: -40~85ºC Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mm x 70mm x 26mm |
| Gross Weight | External: 0.4kg |
Product Pictures
Why Choose TAKFLY
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
