LC Uniboot Fiber Patch Cable 2.0mm Diameter OM4 Multimode Riser OFNR Duplex Fiber Patch Cord
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Zapłata:
| Minimalne zamówienie: | 100szt |
|---|---|
| Cena: | US$0.01~3.99/PC |
| Szczegóły pakowania: | Eksportuj standardowe opakowanie |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union,T/T,MoneyGram/Paypal |
| Możliwość Supply: | 10000 sztuk/dzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Kabel światłowodowy LC Uniboot, 2 włókna, LC UPC Duplex, wielomodowy (OM4), Riser (OFNR), 2,0 mm, Aq | Strata interwencyjna: | ≤0,2dB |
|---|---|---|---|
| Strata zwrotu: | PC MM ≥ 30dB | Typ włókna: | OM4 |
| Średnica: | 2,0 mm | Typ złącza: | komputer |
| Materiał kurtki: | LSZH/PVC/OFNR/OFNP | Kolor: | Aqua lub dostosowane |
| Długość fali: | 850/1310 nm | Długość: | 1M lub dostosowane |
| Temperatura pracy: | -20 ℃ ~ 70 ℃ | Średnica włókna: | 9/125 |
| Stopień: | Stopień telekomunikacyjny | Certyfikat: | CE/ROHS/REACH |
| Zdolność produkcyjna: | 10000 sztuk/dzień | ||
| Podkreślić: | 2.0mm Diameter LC Uniboot Fiber Patch Cable,OM4 Multimode Fiber Optic Patchcord,Riser OFNR Duplex Fiber Patch Cord |
||
opis produktu

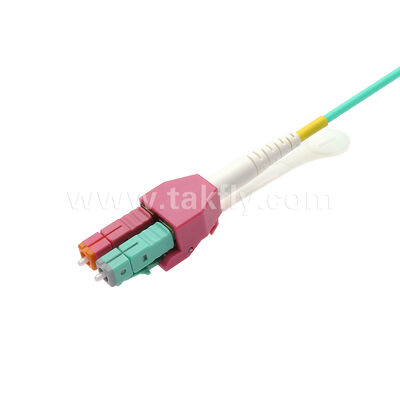

LC Uniboot Fiber Patch Cable
2 Fibers, LC UPC Duplex, Multimode (OM4), Riser (OFNR), 2.0mm, Aqua
Product Overview
Takfly LC Uniboot Fiber Patch Cables feature a specialized "single tube, dual core" structure that integrates two fibers within a single sheath to support duplex transmission. Compared to traditional LC patch cords, Uniboot cables provide superior space efficiency and convenient polarity reversal functionality, making them ideal for high-density cabling environments in data centers and telecommunications networks.
Technical Specifications
| Connector Type | Standard Clip LC to LC | Polish Type | UPC to UPC |
|---|---|---|---|
| Fiber Count | 2 Fibers | Fiber Grade | Bend Insensitive Fiber |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Flame Rating | Riser (OFNR) | Cable Outside Diameter | 2.0mm |
| Polarity | A (Tx) to B (Rx) | Tensile Strength | 60/100N (Long/Short Term) |
| Min. Bend Radius (Fiber) | 7.5mm | Min. Bend Radius (Cable) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.2dB | Return Loss | ≥30dB |
| Attenuation at 850nm | ≤3.5dB/km | Attenuation at 1300nm | ≤1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Key Features
- Uniboot with Single Housing design
- High back reflection loss performance
- Stable capability and high reliability
- Excellent mechanical capability
- PVC jacket as standard
- Ideal solution for high-speed data transmission
- 100% inspected for optical characteristics before shipment
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)

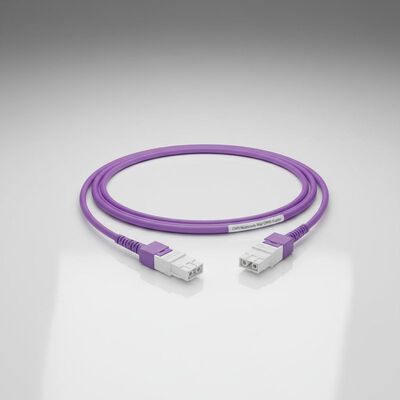

Product Images
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers dedicated to innovation
- 16 sets of Germany imported injection machines and 16 production lines
- Comprehensive testing equipment including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
Our comprehensive quality control process includes:
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton and pallet options available according to your requirements
With more than 10 years of sales and shipping experience in optical fiber products, we have helped more than 127 customers expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales performance.
