Fiber Optic CWDM 8+1Channel MUX & DEMUX ABS Module for Data Center FTTX
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | OEM |
| Orzecznictwo: | ISO, CE RoHS |
| Numer modelu: | DF-8+1 ABS CWDM |
Zapłata:
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | USD38-48/pc |
| Szczegóły pakowania: | Karton |
| Czas dostawy: | 5-8 dni roboczych |
| Zasady płatności: | T/T, Western Union |
| Możliwość Supply: | 50000 sztuk miesięcznie |
|
Szczegóły informacji |
|||
| Złącze: | do ustalenia | ||
|---|---|---|---|
| Podkreślić: | Fiber Optic CWDM MUX DEMUX module,8+1 Channel CWDM ABS module,Data Center FTTX WDM Mux Demux |
||
opis produktu

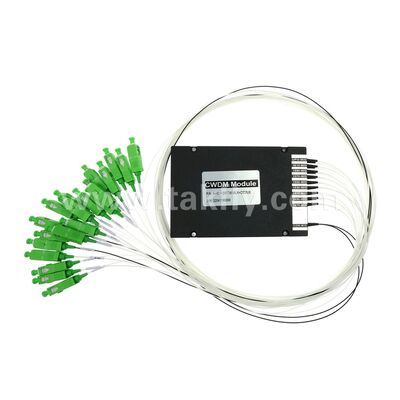

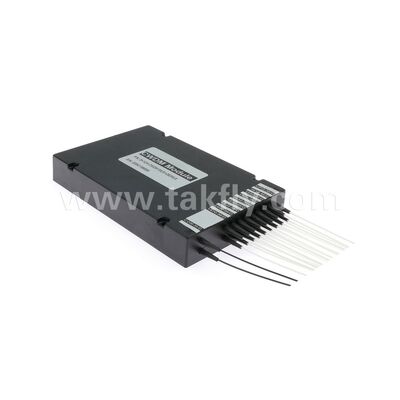

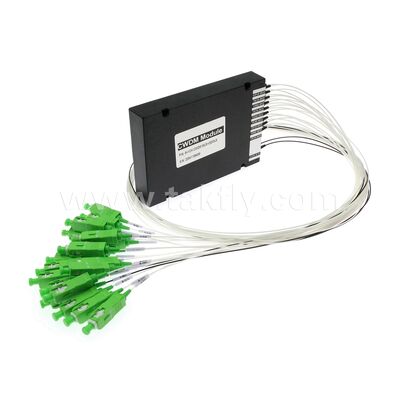

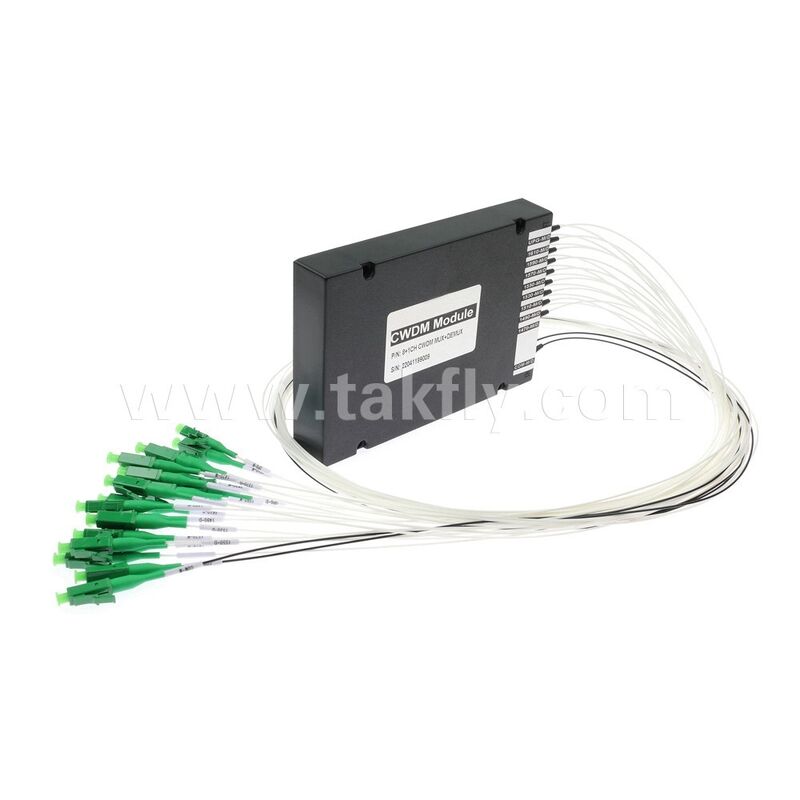

Fiber Optic CWDM 8+1 Channel MUX & DEMUX ABS Module for Data Center FTTX
8+1 Channel CWDM MUX & DEMUX ABS Module
Takfly's CWDM Mux & Demux ABS module utilizes wavelength division multiplexing technology based on TFF (thin film filter), offering multiple wavelength options. It multiplexes optical signals of different wavelengths into a single fiber for transmission and demultiplexes them into separate wavelength signals at the receiver end.
CWDM has established an important position in the access layer of Metropolitan Area Networks due to its wide band capabilities and low system equipment requirements.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
- Epoxy-free on Optical Path
Takfly provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX options with customization capabilities.
Technical Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Channel Count | Ch | 8+1 |
| Channel Center Wavelength | nm | 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE 1270-1350 |
| Channel Passband | nm | ±7.5 |
| Insertion Loss | dB | <2.2 |
| Isolation Adjacent Channel | dB | 30 |
| Isolation Non-Adjacent Channel | dB | 40 |
| Passband Ripple | dB | 0.3 |
| Polarization Dependent Loss | dB | 0.1 |
| Directivity | dB | 55 |
| Return Loss | dB | 50 |
| Polarization Mode Dispersion | ps | 0.1 |
| Power Handling | mW | 500 |
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector |
| Other ports | 0.9/mm white loose tube with connector | |
| Fiber Type | SMF-28e | |
| Fiber Length | m | ≥1 |
| Operating Temperature | ℃ | -10 ~ 70 |
| Storage Temperature | ℃ | -40 ~ 85 |
| Package Dimension | mm | ABS Module |
