ST(male)-LC(female) Adapter SM/MM Low IL 0.3dB High Performance
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | Adapter ST(męski)-LC(żeński) SM/MM niski poziom IL 0,3 dB, wysoka wydajność |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | $ 4.7/per |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union,T/T,MoneyGram/Paypal |
| Możliwość Supply: | 1000 sztuk/dzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Adapter ST(męski)-LC(żeński) SM/MM niski poziom IL 0,3 dB, wysoka wydajność | Wstaw stratę: | <0,2dB |
|---|---|---|---|
| Strata zwrotu: | SM≥45dB | Powtarzalność: | <0,2dB |
| Rodzaje światłowodów: | SM/mm | Zakres temperatury przechowywania (℃): | -40 ℃ - +75 ℃ |
| Certyfikat: | CE/ROHS/REACH | ||
| Podkreślić: | ST to LC fiber optic adapter,low insertion loss fiber adapter,SM MM compatible optic adapter |
||
opis produktu

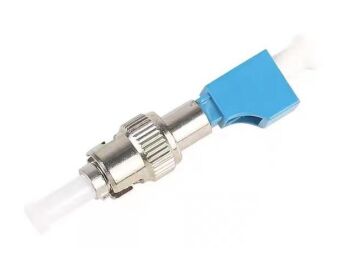

ST(male)-LC(female) Adapter SM/MM Low IL 0.3dB High Performance
Male-female type switching adapters convert one type of fiber optic connector (male) into another type of fiber optic connector interface (female). These adapters feature compact size, excellent light stability, and ease of use, making them widely applicable in fiber optic equipment, instrumentation testing, and engineering rescue construction applications.
- Telecom, Mobile & Unicom, Radio and television
- Optical data transmission connection
- Fiber optic equipment testing and engineering rescue construction
- Low insertion loss, high return loss
- Excellent consistency & repeatability
- Compact size, minimal space requirements
- Easy to use and operate
| Parameter | Specification |
|---|---|
| Return Loss | SM≥45dB |
| Insertion Loss | <0.2dB |
| Repeatability | <0.2dB |
| Optical Fiber Types | SM/MM |
| Storage Temperature | -40℃ to +75℃ |
Note: Male-female type switching adapters utilize embedded fiber and fiber optic ferrule adapter sleeve technology. Customization is available according to specific needs - male connectors can be UPC or APC, while female connectors only accept UPC. Fiber options include SM-9/125um single-mode fiber or MM-62.5/125um or OM2-50/125um multimode fiber.
- Over 25 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
Interested in our products or have questions?
Feel free to contact us at any time for more information or technical support.
