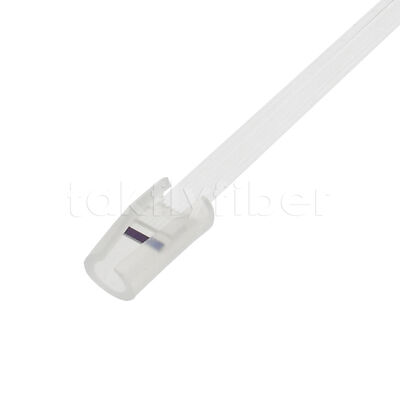

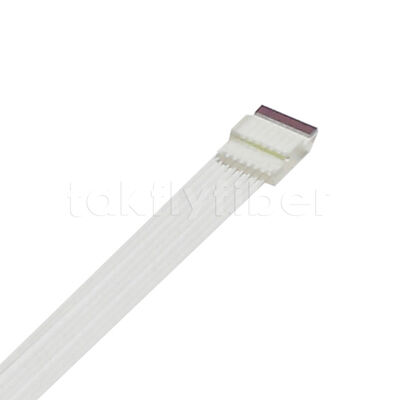

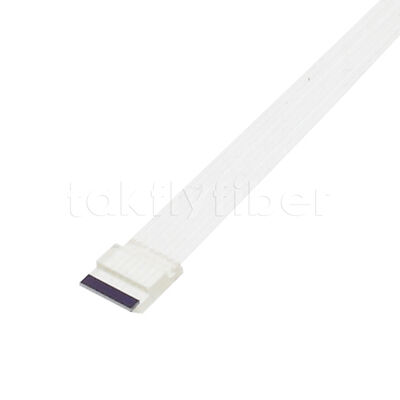

Customized 8CH Fiber Array Unit FA Assembly with High Accuracy and Customized Length
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | OEM/Takfly |
| Orzecznictwo: | CE, ROSH REACH |
| Numer modelu: | DF-MT-2FA |
Zapłata:
| Minimalne zamówienie: | 1 szt |
|---|---|
| Cena: | Can be negotiated |
| Szczegóły pakowania: | Worki PP + pudełko kartonowe / pudełko plastikowe + pudełko kartonowe |
| Czas dostawy: | 3-15 dni roboczych w zależności od ilości i wymagań |
| Zasady płatności: | Akredytywa, T/T, Western Union, MoneyGram, Paypal |
| Możliwość Supply: | 20000 sztuk miesięcznie |
|
Szczegóły informacji |
|||
| Typ włókna: | OM3, OM4; OM1, OM2; OS1, OS2; PO POŁUDNIU; OM5 | Liczba włókien: | 8ch |
|---|---|---|---|
| Kąt FA: | 0 / 42,5° | Długość włókna: | 20 ~ 100 mm, dostępna długość niestandardowa |
| Nazwa produktu: | Dostosowany moduł matrycy światłowodowej 8-kanałowej mocujący zespół matrycy obiektywów FA | ||
| Podkreślić: | 8CH Fiber Array Unit,Customized Length FA Assembly,High Accuracy Fiber Array FA Assembly |
||
opis produktu
Customized 8CH Fiber Array Unit with Lens Array FA Assembly
Takfly OEM offers a comprehensive range of Fiber Array Units (FAUs) designed for long-haul, metro networks, and data center applications. Our customizable V-groove chips and covers, combined with Corning's specialty fiber capabilities, enable us to meet diverse customer requirements for inter-fiber core pitch precision, channel count, fiber type, and termination configurations.
Applications
- Active Optical Modules
- High-speed, high-capacity fiber optic communication systems
- Internal connector applications in fiber equipment
- Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
Key Features
- Stable optical characteristics with consistent performance
- High-precision MT ferrule and small bending radius fiber for minimal loss
- Typical core pitch tolerance <±0.5μm
- High accuracy and full customization capabilities
- Compliance with IEC TIA/EIA and relevant industry standards
- RoHS 2.0 Compliant for environmental safety
Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | - | Optional |
| Fiber Mode | - | SM: G652, G657 | MM: OM1, OM2, OM3, OM4, OM5 |
| Wavelength | nm | 1310/1550 | 850/1300 |
| MT Endface Polishing | - | PC | APC | PC | APC |
| Insertion Loss (IL) | dB | ≤0.35 | ≤0.35 |
| Return Loss (RL) | dB | ≥50 | ≥60 | ≥20 | ≥40 |
| Durability | Time | 50 |
| FA Lid Dimensions | mm | L: 2.5 (Optional) | W: 2 | T: 0.2 |
| V-Groove Dimensions | mm | L: 5 | W: 2 | T: 0.5 |
| Core Pitch | μm | 175, 250 |
| Bare Fiber Degree | ° | 8, 42.5, 45 |
| Insertion Loss (IL) | dB | ≤0.8 |
| Endface Geometric Parameters (3D) | - | Satisfying IEC TIA/EIA standards |
| Operating Temperature | ℃ | -20 ~ +80 |
| Storage Temperature | ℃ | -15 ~ +60 |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
