10/100 M 2-Port Base-T to 100 Base-X Managed Media Converter Factory Direct Sales Reliable Network Connection
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | Zarządzany konwerter multimediów 10/100M z 2 portami Base-T na 100 Base-X Sprzedaż bezpośrednia w fa |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union,T/T,MoneyGram/Paypal |
| Możliwość Supply: | 1000 sztuk/dzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Zarządzany konwerter multimediów 10/100M z 2 portami Base-T na 100 Base-X Sprzedaż bezpośrednia w fa | Metoda dostępu: | 10/100M base-T do 100M base-X (2 porty) |
|---|---|---|---|
| Szybkość transmisji danych: | Automatyczne wykrywanie 10Mbps, 100Mbps w trybie half/full duplex | Temperatura robocza: | 0 ~ 50 ℃ |
| Wilgotność: | 5%~ 90% | Temperatura przechowywania: | -10 ~ 70 ℃ |
| Złącze: | RJ-45 do ST, SC, FC | Gwarancja: | 1-5 lat |
| Marka włókien: | Corning, YOFC, OFS, Draka | ||
| Podkreślić: | 2-port managed media converter,10/100M Base-T to Base-X converter,fiber optic media converter with warranty |
||
opis produktu

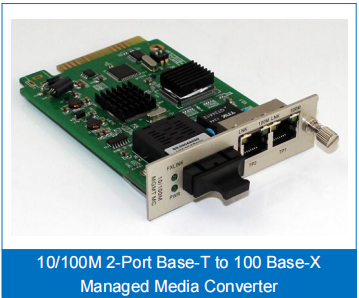

10/100M 2-Port Base-T to 100 Base-X Managed Media Converter
Factory direct sales with reliable network connection for industrial applications.
Product Overview
10/100M manageable fiber media converters offer exceptional price/performance ratio, covering all functions of non-manageable fiber media converters including various data rates, single-mode/multi-mode, and single/double fiber configurations. With simple setup and comprehensive management interface, it supports SNMP, WEB, TELNET, and CONSOLE protocols for integrated chassis management.
Hardware Features
- Support for 10Base-T and 100Base-T standards
- 2-Port RJ45 connectivity
- Compliant with IEEE802.3z, IEEE802.3u, IEEE802.3x, and IEEE802.3ah standards
- High-performance auto-sensing exchange chipset meeting industrial standards
- Maximum 2046 bytes packet at store-and-forward mode, 9K bytes at cut-through mode
- AUTO-MDIX at electrical port for user convenience
- Low power consumption and heat generation
- Standalone type with 10W special communication power supply
- Chassis with dual redundant power supply options
- Hot-swappable media converter cards and management cards
Management Advantages
- Master-slave structure supporting up to 4 cascading chassis
- Management card failure doesn't affect other modules
- Remote and local management capabilities
- Support for CONSOLE, WEB, and SNMP protocols
- RS232 Console Port (RJ45) and 10/100Mbps RJ-45 Ethernet management interfaces
- Complete system information setup and display
- Support for Q-in-Q Double Tag VLAN, IEEE802.1q Tag VLAN, and IEEE802.3x Flow control
- Power supply tracking including AC/DC status and present working status
Technical Specifications
- Real-time voltage and temperature monitoring
- Port configuration and tracking for local/remote devices
- Rate limiting with 32Kbps and 64Kbps basic frames
- Link Loopback test for precise failure location
- Remote power off alarming for failure distinction
- SNMP protocol support with Trap Destination and Community Name settings
- MIB files for integration with third-party software
- Historical alarming and operating log tracking
- Flow statistic and pre-alarming functions
- Equipment remote-restart capability
- Graded management mode with user identification
Technical Parameters
| Interface Type | Specifications |
|---|---|
| Ethernet Interface |
IEEE802.3z, IEEE802.3u, IEEE802.3x, IEEE802.3ah compliant Data rates: 10Mbps, 100Mbps half/full duplex auto-sensing RJ-45 connector UTP CAT5/CAT5E, 100m transmission distance |
| Fiber Port |
Connectors: ST, SC, FC Wavelength: 850nm, 1310nm (Multi-mode); 1310nm, 1550nm (Single-mode) Fiber types: Multi-mode 50/125, 62.5/125, 100/140μm Single-mode 8.3/125, 8.7/125, 9/125, 10/125μm |
| Operating Environment |
Operating Temperature: 0~50°C Storage Temperature: -10~70°C Humidity: 5%~90% (non-condensing) |
Why Choose TAKFLY
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
