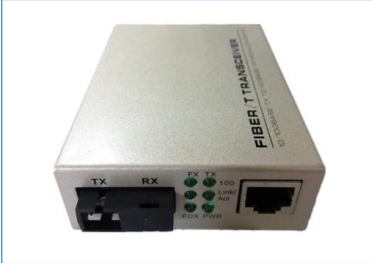

SC Simplex Fiber 10/100Base-TX to 100Base-FX with LFP Fiber Optic Media Converter
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | SC Simplex Fiber 10/100Base-TX na 100Base-FX z konwerterem światłowodowym LFP |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union,T/T,MoneyGram/Paypal |
| Możliwość Supply: | 2000 numerów tygodniowo |
|
Szczegóły informacji |
|||
| Nazwa produktu: | SC Simplex Fiber 10/100Base-TX na 100Base-FX z konwerterem światłowodowym LFP | Standard: | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|---|---|
| Szybkość transmisji danych: | Miedź: 10/100/1000M; Światłowód: 10/100/1000Mbps | Port miedziany: | Złącze: Złącze RJ45 Odległość: 100 m |
| Zużycie energii: | <2W | 1Moc robocza:: | DC5V 1A |
| Kolor obudowy: | Czarny | Temperatura pracy: | Temperatura pracy: 0 ~ 50°C |
| Utrzymanie temperatury: | Temperatura przechowywania: -40~85°C | Wilgotność: | Wilgotność: 5% ~ 95% |
| Waga brutto: | Zewnętrzne: 0,4 kg | Wymiary (szer.* głęb.* wys.): | Zewnętrzne: 94 mm x 70 mm x 26 mm Wewnętrzne: 140 mm x 110 mm x 30 mm |
| Podkreślić: | SC simplex fiber media converter,10/100Base-TX to 100Base-FX converter,fiber optic media converter with LFP |
||
opis produktu
SC Simplex Fiber 10/100Base-TX to 100Base-FX Media Converter with LFP
The DF-MC12 Serial Fiber Media Converter translates signals from twisted-pair 10/100Base-TX cable to 100Base-FX fiber optic cable, extending data transmission distance from 100 meters via copper cables to 120 kilometers using fiber optic technology. This converter supports LFP (Link Fault Pass-through) functionality for enhanced network reliability.
Key Features
- 10/100 Mbps auto-sensing for easy network upgrades
- Full-duplex and half-duplex auto-sensing capability
- MDI/MDI-X Auto Negotiation
- 10/100 Mbps store-and-forward operation
- 1000Mbps cut-through transmission
- Packet size support up to 1518 bytes
- VLAN, VoIP, and QoS packet compatibility
- Flow control with reduced broadcast packets
- STP support for redundant network formation
- Low power consumption with stable thermal performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- LFP (Link Fault Pass-through) Function
- External Power Adapter or USB power source options
- DIP Switch for configuration settings
- Extra-long packet support up to 1600 bytes
Technical Specifications
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow Control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No. of Copper Ports: 1 Connector: RJ45 Distance: 100m |
| Fiber Port | No. of Fiber Ports: 1 Connector: SFP as default, FC/ST/SC optional Wavelength: TX 1550 nm/RX 1310 nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED Indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action), 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power Supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power Consumption | <2W |
| Environment | Operating temperature: -10~55ºC Storage Temperature: -40~85ºC Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mmx70mmx26mm Internal: 140mmx110mmx30mm |
| Gross Weight | External: 0.4kg Internal: 0.5kg |
Why Choose TAKFLY
- 26+ years of fiber optic product manufacturing experience
- 450+ assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers for continuous innovation
- 16 Germany-imported injection machines and production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
Q6: What are your packing terms?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
