ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Shenzhen |
| Nazwa handlowa: | TAKFLY |
| Orzecznictwo: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Numer modelu: | DX-Pancerz-T1771 |
Zapłata:
| Minimalne zamówienie: | 1 Piki |
|---|---|
| Cena: | US$0.01 ~ US$1200/PC |
| Szczegóły pakowania: | szpula + pudełko + karton |
| Czas dostawy: | 3-7 dni roboczych |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Szczegóły informacji |
|||
| Promień zgięcia: | 20D/15D | Instalacja: | Antenowy |
|---|---|---|---|
| Osłona: | LSZH | Connetcor: | SC/PC do SC/PC |
| Średnica: | 8,5 ~ 16 mm | Typ kabla: | Tryb jednomodowy |
| Temperatura pracy: | -40°C do +70°C | Zezwalała na wytrzymałość na rozciąganie: | 100n <1000n |
| Długość: | 2000m na rolkę lub dostosowane | Liczba błonnika: | 2 rdzenie/4 rdzenie |
| Pakiet Transportowy: | Drewniany bęben | Uszczelka: | drewniany dureń |
| Kurtka: | PCV | Metoda instalacji: | Wewnątrz/na zewnątrz |
| Typ złącza: | LC/UPC | Liczba włókien: | 12 |
| Materiał kurtki: | PE | Rdzeń: | 12, opcjonalne |
| Czas gwarancji: | 20 lat | Odporność na kruszenie: | ≥1000N/100mm |
| Struktura kablowa: | Ciasny bufor typu łukowego | Kod produktu: | GJYXCH-1B |
| Zewnętrzny materiał osłony: | MDPE | Wytrzymałość na rozciąganie: | ≥100N |
| Maksymalna wytrzymałość na rozciąganie: | 1000n | Model: | SC/APC~SC/APC |
| Utrata wtrąceniowa: | 0,2dB | Średnica zewnętrzna: | 4,5 mm lub na życzenie klienta |
| materiał zewnętrzny: | Druty metalowe | Standard: | IEC60794 |
| Członek siły: | OEM | Numer włókna: | 12 rdzeni |
| Rok produkcji: | 2010 | Kolor powłoki zewnętrznej: | Czarny, szary, biały |
| Test Falu długości fali: | 1310 nm ~ 1550 nm | Model kablowy: | GJPFJV |
| Wibracja: | ≤0,2dB | Pakiet: | Drewniany baran |
| Wzmocnienie: | Żelazo lub KFRP lub FRP | Zewnętrzna powłoka: | PE |
| Rdzeń światłowodowy: | 2 ~ 144 rdzenie | Szybkość transmisji danych: | 4*10G |
| Opcje światłowodowe: | G652D,G657A,OM1,OM2,OM3,OM4 | Masa nominalna: | 83 |
| Długość fali odcięcia kabla: | λcc≤1260um | Sposób instalacji: | Pył/bezpośrednia instalacja zakopana |
| Rura: | Konstrukcja luźnych rurek | Tworzywo: | PE/LSZH |
| Port: | Ningbo | Kolor: | Żółty lub dostosowany |
| Materiał kurtki: | PCV | liczba rdzeni: | na twoją prośbę |
| Wysyłka: | TNT, DHL, UPS, FEDEX lub EMS | Wewnątrz lub na zewnątrz: | Wnętrz |
| Rozmiar bębna: | 300x300x300 | Długość włókna: | 1M lub dostosowane |
| Tryb światłowodowy: | Jednokomórkowy G652D G657A | Słowa kluczowe: | Kabel ADSS |
| Sieć: | 4g, 3G | OEM: | Powitanie |
| Liczba dyrygentów: | ≥ 10 | ||
| Podkreślić: | ADSS fiber optic cable 100m span,All-dielectric aerial cable 96 fibers,Self-supporting fiber optic cable 4 fibers |
||
opis produktu

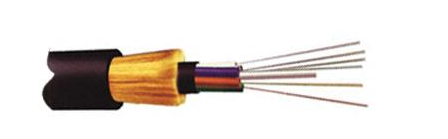

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

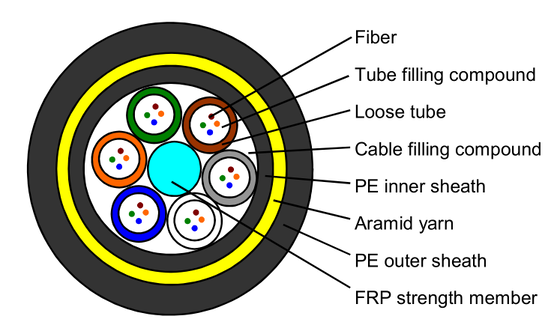

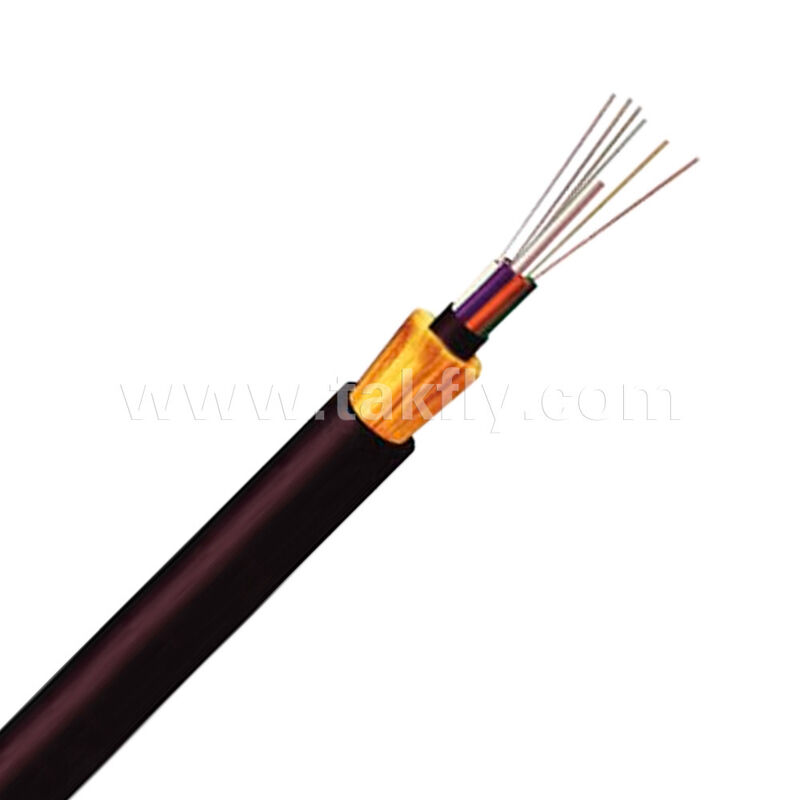

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
