GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny, Shenzhen |
| Nazwa handlowa: | DF/OEM/Nuetral |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | TK-PC-48F-SC-OS2-50M |
Zapłata:
| Minimalne zamówienie: | Zbywalny |
|---|---|
| Cena: | negotiable denpend on QTY |
| Szczegóły pakowania: | Pudełko blistrowe + karton |
| Czas dostawy: | 5-9 dni roboczych zależy od ILOŚCI |
| Zasady płatności: | Western Union, T/T, MoneyGram/Paypal |
| Możliwość Supply: | 1000pcs/dzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Kabel optyczny GJX(F)H | Liczba błonnika: | GJXH-1~4; GJXFH-1~4 |
|---|---|---|---|
| Średnica światłowodu (±1µm): | 125 μm | Średnica powłoki światłowodu (±5µm): | 250 μm |
| Wzmocnienie rdzenia: | FRP/KFRP/drut stalowyFRP | Element wzmacniający Średnica (mm): | 0,5 mm |
| Uzupełniające: | LSZH | Osłona Materiał osłony: | MDPE/HDPE lub LSZH |
| Kolor: | Czarny | Średnica zewnętrzna (mm): | 2.0*3.0 |
| Masa kabla (kg/km): | 10,5; 9 | Temperatura pracy: | -20 ℃ ~ 70 ℃ |
| Marka światłowodowa: | Corning, YOFC, OFS, Draka | ||
| Podkreślić: | FRP reinforced fiber optic cable,steel wire FRP optical cable,1-4F fiber optic cable |
||
opis produktu
GJX(F)H Optical Cable FRP/KFRP/steel wireFRP 1-4F
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. Two parallel strength members are placed at the two sides, then the cable is completed with black LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for aerial, pipeline laying method
- As FTTH cable, for indoor horizontal and vertical cabling
- Meet various requirements of market and clients
Product Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Simple structure, light weight and high practicability
- Low smoke, zero halogen and flame retardant sheath
- Meet various requirements of market and clients
Optical Parameter and Properties

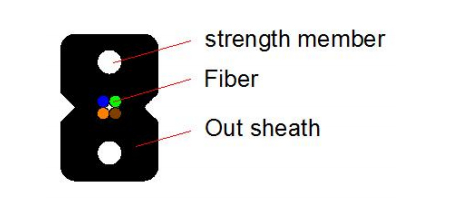

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE GJXFH 3.0X2.0 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
