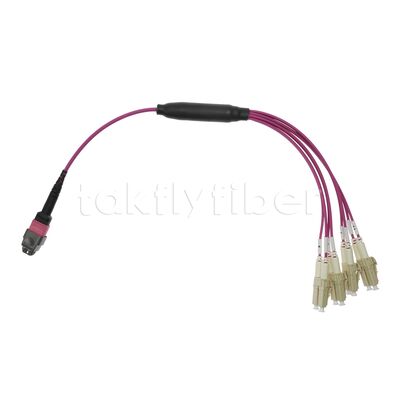

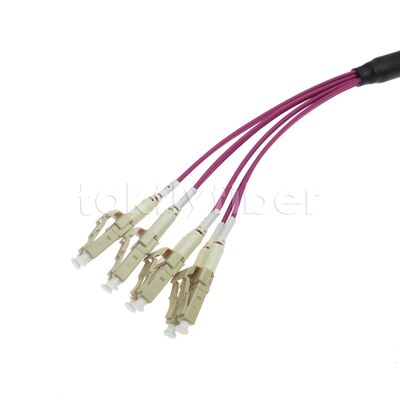

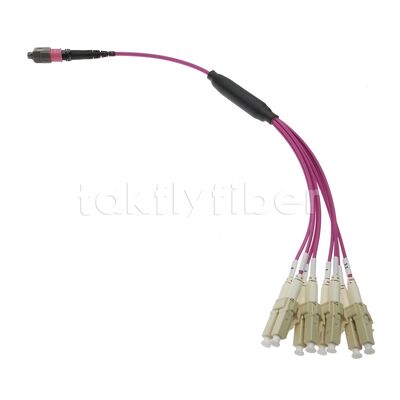

Low Loss CPR B2ca 40G 50/125 OM4 Multimode MTP MPO Breakout Fiber Patch Cable
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | Neutral/OEM/Takfly |
| Orzecznictwo: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Numer modelu: | TK--PC-MTP4LC4-0300 |
Zapłata:
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | US$9.99~US$20.99/PC |
| Szczegóły pakowania: | Torba PE |
| Czas dostawy: | 3-7 dni roboczych |
| Zasady płatności: | Western Union, L/C, T/T, Paypal |
| Możliwość Supply: | 5000pcs/dzień |
|
Szczegóły informacji |
|||
| Rdzenie: | 8 | Typ włókna: | MM OM4 |
|---|---|---|---|
| Długość: | 0,5 M/1 M/5 M/10 M/50 M/100 M lub dostosowane | Średnica kabla: | 3,0 mm |
| Typ złącza: | MPO/MTP, APC/PC, męski/żeński | Strata wtrąceniowa: | Standard: 0,7 dB, niska strata: 0,35 dB |
| Strata zwrotu: | MM PC: 20 dB | Kurtka kablowa: | LSZH |
| Kolor kabla: | Fioletowy/Magenta | Aplikacja: | Centrum danych, telekomunikacja, sieć |
| Orzecznictwo: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | ||
| Podkreślić: | Low Loss CPR OM4 MTP breakout cable,40G 50/125 multimode fiber patch,MTP MPO breakout cable with CPR |
||
opis produktu
Low Loss CPR B2ca 40G 50/125 OM4 Multimode MTP MPO Breakout Fiber Patch Cable
MPO Breakout cable provides a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers where space optimization and simplified cable management are essential.
Takfly manufactures data center grade fiber optic MPO patch cords featuring spring-loaded sliding mechanisms that ensure secure, reliable connections for network cabling in enterprise data centers, backbone systems, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly undergoes 100% factory testing to meet IEC 61753-1 standards.
Key Features
- High Density - Multifiber connector and compact ruggedized micro cable design optimizes space in costly data center environments
- Rapid Deployment - Factory-terminated modular system saves installation and reconfiguration time during moves, adds, and changes
- Reliability - 100% tested with high-quality components and manufacturing quality control
- Next Generation Network Proof - Compatible with emerging high-speed protocols using MTP/MPO interfaces
- Compact design supporting up to 4, 8, 12, or 24 fibers
Certifications
CE, ROHS, REACH, CPR, ISO9001, and ISO14001
Technical Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM (G652 / G655 / G657); MM (OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60dB PC MM: 25dB |
SM: APC: 60dB MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃ to 70℃ | |
| Storage Temperature | -40℃ to 80℃ | |
| Outer Sheath Material | PVC / LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Device/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Why Choose TAKFLY
Professional Manufacturer
- Over 21 years of manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years of experience
- 36+ R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half-done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging options: Plastic Bag, Carton, and Pallet
- Shipping methods: DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- Sea or Air freight available
Payment Terms
T/T, PayPal, Western Union, and L/C accepted. Competitive pricing available for large quantities.
With over 10 years of industry experience, we provide excellent service and professional technical support.
If you're interested in our products or have any questions, please contact us for a quotation.
