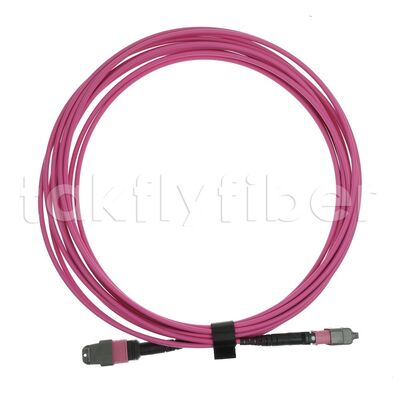

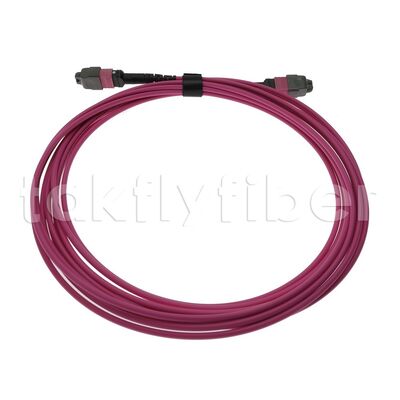

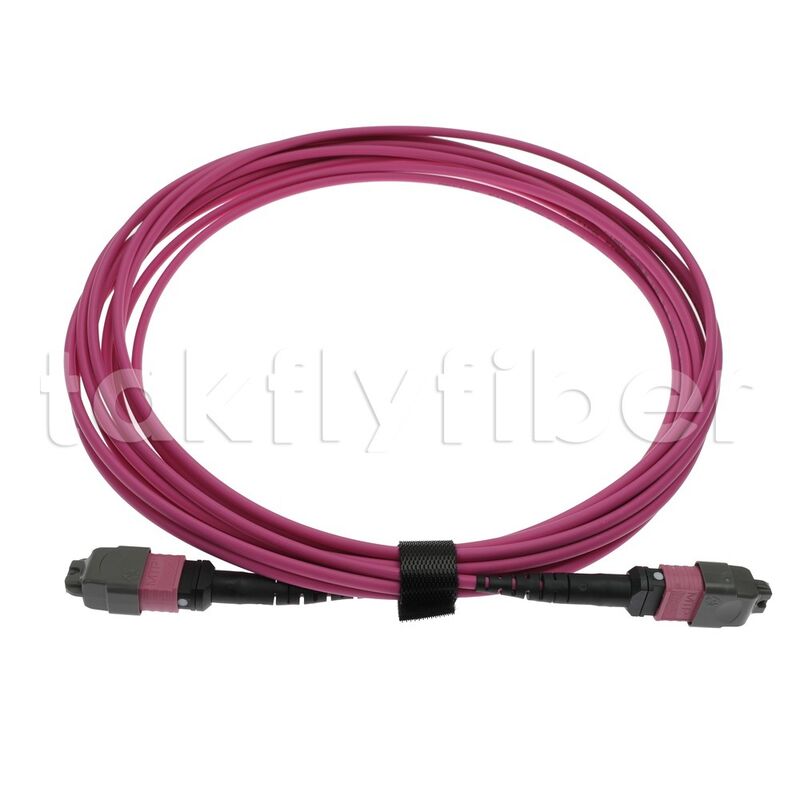

CPR B2ca Multimode OM4 MPO to MPO Fiber Trunk Cable, MTP-12 OM4 Female to Female, Type A, 5m
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | Neutral/OEM/Takfly |
| Orzecznictwo: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Numer modelu: | TK-PC-MTP-12F-OM4-OFNP-005 |
Zapłata:
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | US$0.01~US$25.99/PC |
| Szczegóły pakowania: | Torba PE |
| Czas dostawy: | 3-7 dni roboczych |
| Zasady płatności: | Western Union, L/C, T/T, Paypal |
| Możliwość Supply: | 500 sztuk/dzień |
|
Szczegóły informacji |
|||
| Rdzenie: | 12F | Typ włókna: | MM OM4 |
|---|---|---|---|
| Długość: | 1M/5M/15M lub dostosowane | Średnica kabla: | 3,0 mm |
| Typ złącza: | MPO/MTP | Utrata wtrąceniowa: | Niska strata: 0,35 dB |
| Strata zwrotu: | MM ≥20dB | Kurtka kablowa: | OFNP |
| Kolor kabla: | Magenta, fiolet | Aplikacja: | Centrum danych, telekomunikacja, sieć |
| Orzecznictwo: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Nazwa produktu: | Wiązka światłowodowa 12F MPO-LC Uniboot MPO Breakout Patch Cable, Plenum (OFNP), maks. 0,35 dB. |
| Podkreślić: | OM4 MPO fiber trunk cable,MTP-12 OM4 female to female cable,5m MPO trunk cable with warranty |
||
opis produktu
CPR B2ca Multimode OM4 MPO to MPO Fiber Trunk Cable, MTP-12 OM4 Female to Female, Type A, 5m
CPR B2ca Multimode OM4 MPO to MPO Fiber Trunk Cable, MTP-12 OM4 Female to Female, Type A, 5m
The requirements for data center infrastructures are increasing as the rapid growth in worldwide IT usage continues. As an experienced and innovative fiber optic patch cable manufacturer, Takfly produces complete MPO trunk fiber optic cabling solutions for high-density optical connectivity in the modern data center. Compared with traditional fiber optic cabling solutions, this high-density fiber optic solution offers higher flexibility and space-saving while supporting high data rates, such as 10-Gigabit, 40-Gigabit Ethernet, and 100-Gigabit Ethernet.
Takfly is a factory pre-terminated 50/125 Multimode OM4 MPO trunk cable, offering the advantage of consistent quality, much faster installation, and simpler cable management. The MPO fiber optic trunk cable is manufactured with multiple, 12-strand Senko MPO female connectors and 12-core laser-optimized multimode (LOMMF) OM4 fiber optic cables. This MPO trunk cable conforms to Method B (Cross-Connect) polarity, and the MTP® connector is available upon request. This MPO OM4 fiber trunk cable is suitable for 40G QSFP+ SR4, 40G QSFP+ eSR4, and 100G QSFP28 SR4 transceiver optics connection.
MPO Fiber Optic Patch Cable Features & Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm；Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Features
- Factory-terminated provides consistent quality, high performance, and reduced installation time
- 100% tested for low insertion loss performance and high back reflection
- Fiber Count: 12 fiber trunk cable
- Laser-Optimized multimode OM4 fiber
- Type B polarity, used for 40G QSFP eSR4 and 100G QSFP28 SR4 optics
- Optimized performance - available in elite MTP and discrete premium connector upon request
- Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
- LSZH Jacket by Default
Benefits
- Next Generation Network Speeds
- Assemblies can be used throughout multiple active equipment upgrades to future-proof your network
- Modular connectivity support 400G/800G migration plans
- Factory terminated assembly saves installation and reconfiguration time during moves, adds and changes
- Configurable length assemblies reduce slack management, patch field congestion, and improve air-flow
Applications
- Data Center
- Campus
- Central Office
- Office Backbone
Polarity
Takfly MTP MPO Patch Cable Production Flow Diagram
Why Choose TAKFLY
Professional Manufacturer
- More than 25 years manufacturing experience in fiber optic products - one stop purchasing
- More than 450 assembly workers with 3+ years experience
- More than 26 R&D Engineers
- 16 Sets Germany imported Injection Machine and More than 10 Cable Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand is acceptable
- Worldwide Exhibition participation
- 24/7 After-sales Services
Quality Control
- Spot check raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Shipping
- DHL, UPS, FEDEX, TNT, EMS - usually 3-5 working days with tracking
- By Sea or By Air - can use your designated forwarder or our partnered one
Payment Terms
T/T, Paypal, Western Union and L/C available
Pricing
If your quantity is large, pricing can be negotiated
