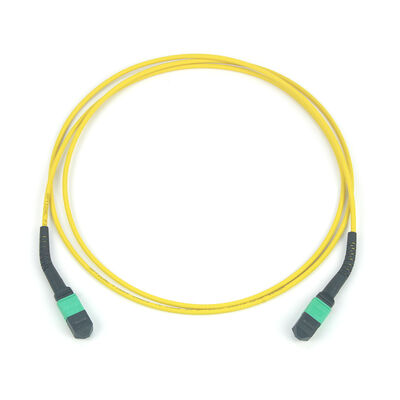

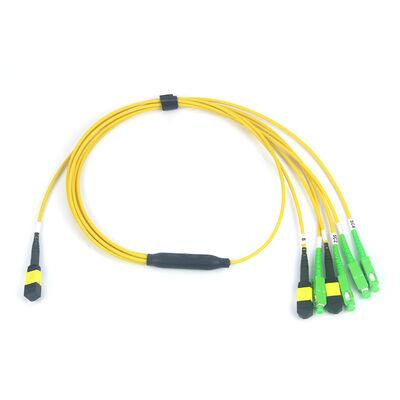

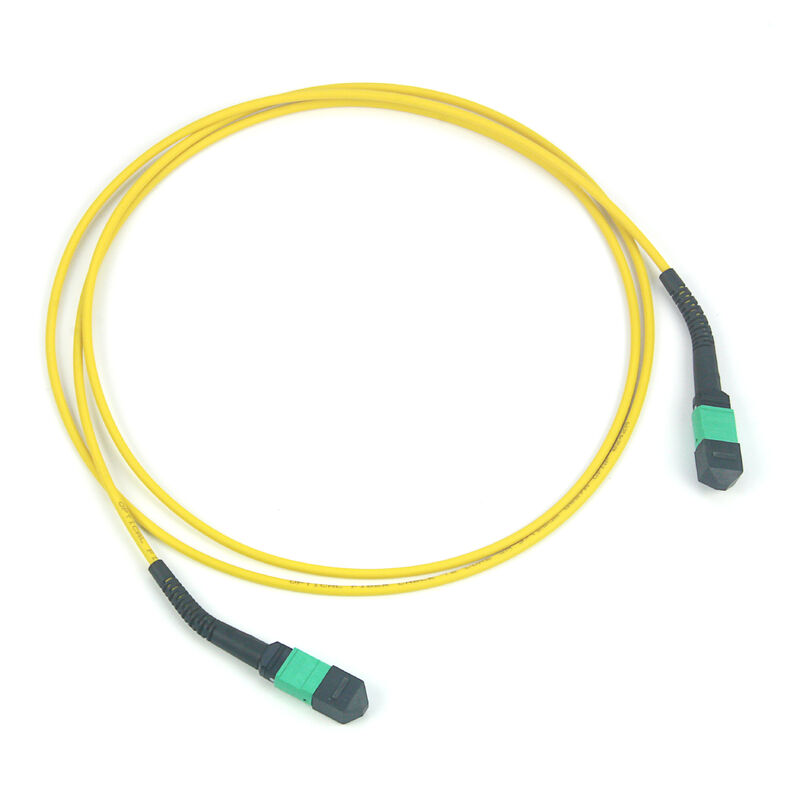

Scalable 12-144 Core MPO MTP Fiber Optic Cable with LC, SC, FC, MPO, or MTP Connectors and 50/125um Fiber Mode
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | Takfly/OEM |
| Orzecznictwo: | CE, ISO, RoHS, GS |
| Numer modelu: | Kabel krosowy MPO/MTP |
Zapłata:
| Minimalne zamówienie: | 1 szt |
|---|---|
| Cena: | US $9.88-US $19.88/ Pcs |
| Szczegóły pakowania: | Torba PP, a następnie w kartonie |
| Czas dostawy: | 3-7 dni roboczych |
| Zasady płatności: | Akredytywa, T/T, Western Union, Paypal |
| Możliwość Supply: | 50000 sztuk / miesiąc |
|
Szczegóły informacji |
|||
| Rdzeń: | Multicore | Złącze a: | Sc |
|---|---|---|---|
| Złącze b: | MPO/MTP | Tryb światłowodowy: | 50/125um |
| Średnica kabla: | 0,9/2,0/3,0 | Typ polski: | PC/APC |
| Strata zwrotu: | MM/PC: 20 dB/SM/APC: 60 dB | Utrata wtrąceniowa: | Maks. 0,35 dB (typowo 0,15 dB) |
| Zewnętrzny materiał osłony: | PVC/LSZH | Promień gięcia statyczny/dynamiczny: | 10dni/20dni |
| Kod Hs: | 854470000 | Płeć: | Mężczyzna/kobieta |
| Podkreślić: | 12-144 Core MPO MTP Fiber Optic Cable,LC SC FC MPO MTP Connectors MPO MTP Patch Cord,50/125um Fiber Mode MPO MTP Jumper |
||
opis produktu
Engineered Fiber Infrastructure Solutions
Scalable 12-144 Core Cables with Your Choice of LC, SC, FC, MPO, or MTP Connectors
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Key Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4, 8, 12, 24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Technical Specifications
| Item | LC, SC, ST, FC Connectors | MPO/MTP Connectors |
|---|---|---|
| End face type | PC, UPC and APC | PC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | |
| Core number | 12, 24 | |
| Cable Diameter | 0.9, 2.0, 3.0 mm | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60 dB PC MM: 25 dB |
SM: APC: 60dB MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃ to 70℃ | |
| Storage Temperature | -40℃ to 80℃ | |
| Outer Sheath Material | PVC, LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Custom Ordering Guide
How to Order Optical Fiber Patch Cords
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. More quantity, the price will be more competitive.
3. Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver by sea. We can quote price with freight and lead time after you provide detailed requirements with quantity.
4. How is your quality?
Our production follows IEC, Europe standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
5. What's your lead time?
It depends on quantity and products. For fiber optic patch cords, lead time can be 2-3 working days within 5000 pieces. We keep regular products in stock and can handle urgent orders.
6. What's your warranty?
1 year warranty for patch cords since delivery, covering non-artificial damage. For artificial damage, we repair for free with freight paid by customer.
7. What's your packing?
International export standard package. Custom logo printing available upon request.
8. Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreement.
9. Can I have a sample?
Free samples provided under $10 value. Freight paid by buyer before delivery.
10. How can I order?
- Send inquiry with product name, specification, and quantity
- We provide quotation with lead time
- Confirm quotation and receive PI with bank account
- Production begins after payment received
- Confirm consignee before delivery
- Tracking number provided after delivery
11. What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.
