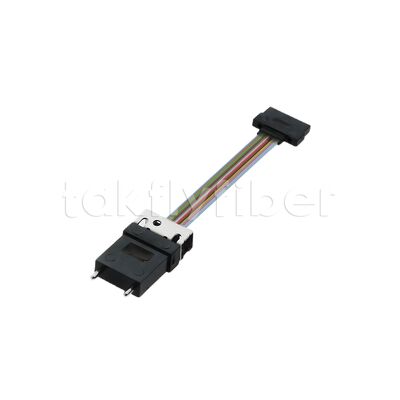

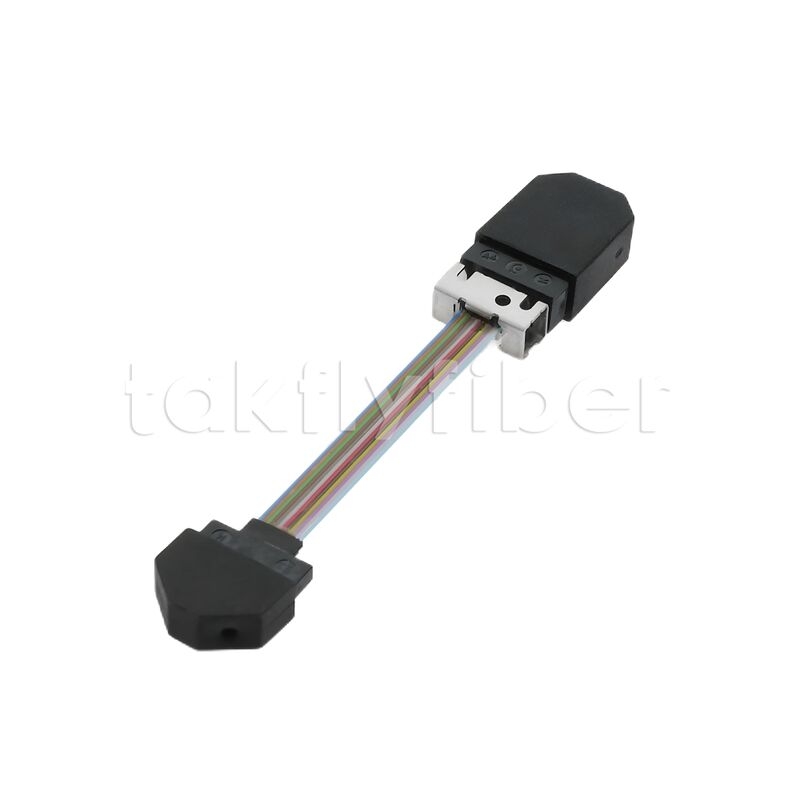

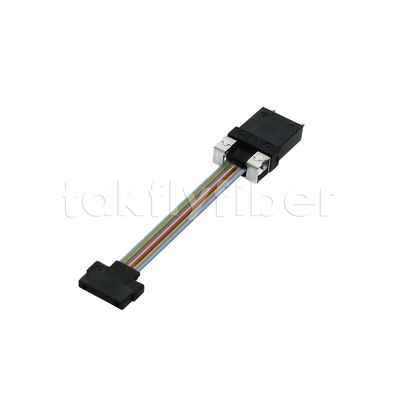

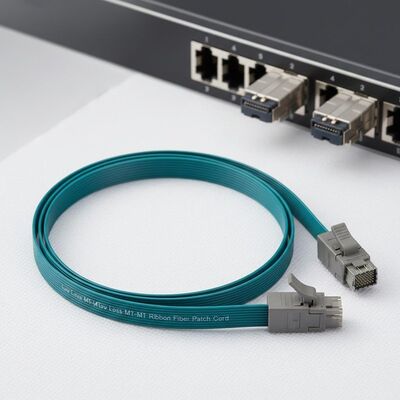

Low Loss MT-MT Fiber Optic Patch Cord with Ribbon Type Design for QSFP28 and Other Parallel Optical Modules
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | OEM |
| Orzecznictwo: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numer modelu: | MPO MTP |
Zapłata:
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | 5.99~10.99US$/PC |
| Szczegóły pakowania: | Z Kartonowym Pudełkiem |
| Czas dostawy: | 3-7 dni roboczych |
| Zasady płatności: | T/T, Western Union, PayPal |
| Możliwość Supply: | 50000 sztuk na tydzień |
|
Szczegóły informacji |
|||
| Nazwa produktu: | Patchcord światłowodowy MT-MT do QSFP, QSFP+, QSFP28, 100GPSM4,CXP, CFP, CDFP | Rdzenie światłowodowe: | 2F/4F/8F/12F/24F |
|---|---|---|---|
| Tryb światłowodowy: | OM2, OM3, OM4, OM5; OS1, OS2 | Typ polerowania: | APC lub PC |
| Płeć: | Mężczyzna, Kobieta | Strata: | Niska strata lub standardowa strata |
| Długość włókna: | 20 mm do 50 mm | Kształt światłowodowy: | Rodzaj wstążki |
| Tolerancja długości: | +0,3/-0 mm~+0,5/-0 mm | ||
| Podkreślić: | Low Loss MT-MT Fiber Optic Patch Cord,Ribbon Type MPO MTP Patch Cord,QSFP28 Compatible Fiber Optic Jumper |
||
opis produktu
MT-MT Fiber Optic Patch Cord for QSFP, QSFP+, QSFP28, 100GPSM4, CXP, CFP, CDFP
The MT-MT Fiber Optic Patch Cord is engineered for parallel optical technology modules, connecting internal optical lenses with external ports to fulfill signal transmission requirements. These stable, high-performance, and compact fiber optic transmission devices support various network configurations and applications.
Key Features
- Compatible with GR-1435 and GR-1221 standards
- Multi-channel parallel optical connection transmission mode
- Supports 40G (4x10G), 100G (4x25G), 4x32G, 200G (8x25G), 800G (8x100G)
- Passive coupling between MT and MT at 0° and 8° through guide pin
- Insertion loss ≤ 0.60dB, typical insertion loss 0.20dB, return loss ≥ 20dB
- Operating temperature range: -40℃ to +85℃
Applications
Designed for QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules. Supports OEM/ODM matching for internal micro connection applications in various optical modules above 200G.
Technical Specifications
| Item | Specification |
|---|---|
| Connector A | MT insert with guide pin |
| Connector B | MT pin |
| Fiber shape | Ribbon / loose fiber |
| Number of cores | 8F/12F/16F/24F |
| Optical fiber model | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20-50mm Optional |
| Length tolerance | +0.3/-0mm to +0.5/-0mm |
Quality Assurance: 100% testing for insertion loss, return loss, end face test, 3D test and polarity test before shipping.
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 6+ years experience
- 10+ R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Main partners: Nvidia, Google, Vodafone, Telefonica, Orange, Movistar
Quality Control Process
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton and pallet options available according to your requirements
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton and pallet options available according to your requirements
With over 10 years of professional experience at Takfly and extensive knowledge of fiber optic products, our team is ready to assist with your requirements. Contact us today to discuss your fiber optic product needs.
